Cosmos H100
|
|
|
|
|
|
|
EVI-H100S |
SE-2000 |
SE-3000 |
V800HD |
Cosmos |
Extras |
Cosmos H100 includes 2-7 robotic (computer-controllable pan/tilt/zoom) hi-def cameras and full hi-definition Datavideo SE-2000 or SE-3000 switcher/mixer. By choosing Cosmos H100 you get top quality Sony HD cameras and full HD-SDI production with the Datavideo SE-2000 or SE-3000 HD-SDI system. These HD-SDI cameras (our Cosmos H100 systems include the HD-SDI outputs required for the cameras as used in the Cosmos H100 systems) also support RS232 (COM port) or RS422 control from your PC running our full-featured CosmosH100 camera control software.
The Sony EVI-H100S camera has HD-SDI output with 1080i, 1080p, and 720p output (user-selectable in either 50fps or 59.94fps scan rates). With Sony's newest Exmoor CMOS image sensor you get sharp crisp HD video quality, and the camera has a wide angle view with 20X optical zoom. Based on the proven Sony pan/tilt/zoom technology, the EVI-H100S has a 340-degree panning range and 110 degree tilt range. It's also small (1.55kg weight, 145 x 164 x 164 mm size) and has the control features you want for a high quality, yet economical, true HD Cosmos H100 system.
Sony EVI-H100S Camera Full Specs Info
DataVideo's fully HD SE-2000 5-source switcher has inputs for up to 5 HD sources (3 or 4 HD-SDI + 1 or 2 DVI-D) and 4 balanced audio inputs, with 2 HD-SDI outputs and 2 balanced audio outputs. Three video inputs are HD-SDI, one is DVI-D, and one is user-selectable as either HD-SDI or DVI-D. It's easy to set up as many as 4 HD-SDI cameras and also have a PC graphics DVI-D input for a flexible multi-purpose HD production. With a HD-SDI/DVI-D converter you can even have up to 5 cams. You have a complete HD-SDI system, with two HD-SDI outputs and a DVI-D 'multi-view' monitoring output (we include a 17" LED-backlit LCD multi-view monitor, see below). The SE-2000 switcher is a proven winner that handles all the inputs and lets you switch smoothly from one video source to another using wipes, fades, and other effects. Datavideo's SE-2000 switcher has a DVI input for the fifth source coming from a computer graphics card DVI ouput. It's a full broadcast-quality HD multi-camera portable desktop video capability for your church, conference room, or other 'studio' environment (with built-in frame-sync on all channels). And Cosmos H1 lets you integrate the flexible power of the SE-2000 with advanced computer-control of robotic HD-SDI cameras for a compact studio centered on a single PC or laptop. The SE-2000 can output to your flat screen or projector HD-SDI devices - so you have real HD from cameras all the way through to your display. If your display uses DVI or other HD input connectors, we will configure an optional converter to get you the right combination for your system.
DataVideo's fully HD SE-3000 8/12/16-source switcher has inputs for 8 HD-SDI and (optionally) 4 or 8 additional up-converted SD-SDI sources. It's easy to set up as many as 7 HD-SDI cameras and also have a PC graphics input, all on the basic SE-3000-8 for a flexible multi-purpose HD production. The SE-3000 switcher is a proven winner that handles all the inputs and lets you switch smoothly from one video source to another using wipes, fades, advanced digital effects, multiple keying sources and built-in still-store. The whole SE-3000 is configurable using its own touch-screen and you have an amazingly flexible and powerful system with 8 HD-SDI inputs and optional extra inputs for legacy sources that get up-converted to HD and all SE-3000s are designe for operation using one or two multi-view monitors.
DataVideo SE-3000 Video Mixer/Switcher Full Info

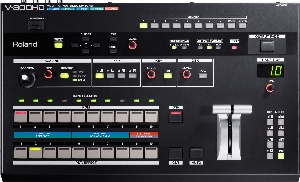

Roland's fully HD V800HD 12-source switcher has inputs for 4 HD-SDI, 4 (switchabel) DVI-analog/digital(HDMI) and 4 composite video (standard-def) sources. You can use any combination of 8 of the inputs to set up as many as 7 HD cameras and a PC graphics input, or even leverage existing standard-def cameras, DVD players, and related equipment. It's all possible at once on the flexible V800HD for a true HD/SD multi-format production. The V800HD switcher is a proven winner that handles simultaneous HD and SD inputs and lets you switch smoothly from one video source to another using wipes, fades, PIP, and keying sources as well as still-store and access to images throuh a USB memory stick. The whole V800HD is configurable using simple on-screen menus and you have an amazingly flexible and powerful system with 4 HD-SDI inputs, 4 DVI/HDMI, and 4 composite extra inputs for legacy sources.
Roland V800HD Video Mixer/Switcher Full Info
Accompanying the SE-2000 or SE-3000 switcher is DataVideo's 17" HD-SDI LED-backlit LCD monitor. The LCD displays all video source and output signals for simultaneous view (multi-view). This monitor has 2 HDMI, VGA, YUV (component), S-video, and 2 composite video inputs - all user selectable, and selectable SD or HD aspect ratio (4:3 or 16:9). You can use it for all your display monitor needs and it's perfect as the multi-view display for all Cosmos HD-SDI hi-def systems.
Our Roland V800HD systems can include the Datavideo 17" LCD multi-view monitor as an option.
Tying together the whole package is the software heart of the Cosmos H100 system: the Cosmos software package (for Windows PCs). Cosmos software gives you detailed direct camera positioning (pan, tilt, zoom, focus, and more), preset-positions, and video settings (white balance, backlight, brightness) for the robotic cameras. And the Cosmos software also communicates with the SE-2000 or SE-3000 switcher to allow direct operation of switcher functions from one software GUI. With this powerful package of software you can control all your cameras individually and switch video sources on the SE-2000 or SE-3000.
Cosmos is an invaluable integration of camera-control with switcher operations for use with live production setups like small studios, churches, meeting rooms, and more. Now Cosmos robotic cameras can become integrated with the SE-2000 and SE-3000 into a studio-like operating environment in a single package that can be run by one operator at a single PC console or using an Android touchpad tablet.
CosmosH100 Software Details:
More Software Info And Screen Shot Images
|
High Definition Hard Drive RecordersThe Datavideo HDR-60 hard drive DVR records with HD-SDI input and has HDMI output for HD playback. The HD-SDI input also loops through to permit further transmission to other devices. Records in 1920x1080i, 1080p, 720p, and 576i (PAL) and 480i (NTSC). Selectable bit rates from 5-15Mbps (SD) and 20-60Mbps (HD). Then you pop out its removable drive cartridge and connect (USB) to your PC or MAC to transfer video files for editing. With a 320 Gigabyte hard drive (included), the HDR-60 can record and store over 12 hours of video at 60Mbps (up to 142 hours at 5Mbps). Desktop HDR-60 shown, rackmount version (HDR-70) also available (same price). Add $1950.00. |
|
|
Cosmos Tablet Control PanelsOur new Cosmos Android Tablet control panel app for all Cosmos packages.Full Cosmos Tablet Controller Info Page |
|
Optional CG Titling System For Cosmos H100Datavideo CG350 combines a powerful graphics/text overlay and titling CG software package with a Decklink HD Extreme video overlay card (for your PC) to provide a flexible and complete overlay system that operates through your separate PC. Add $2750.00 (basic kit = software + overlay card included).Full CG350 Info |
NEW! HD-SDI AutoCG - Call for full info - Brand New Product
|
|
|
HD-SDI to Analog-Component Output Converter For Cosmos H100Use this Datavideo DAC-50 converter to connect the HD-SDI output of the SE-2000 to your HD component big-screen display or projector. Add $550.00.Other converters available for HDMI to HD-SDI, etc. - CALL. |
|
HD-SDI Four Ouput HD-SDI Distribution Amplifier For Cosmos H100Use this Datavideo VP-445 HD-SDI DA to expand the outputs of the SE-2000 to multiple devices or video paths. Add $480.00. |
Other OptionsVideobotics can provide other devices like internet video encoders for remote viewing, pre-configured stand-alone CG overlay computers systems, additional 17" multi-input monitors, wall-mount brackets, and other options and accessories. We're happy to help with special applications. Please CALL to discuss your needs. |
Cosmos H100 adds a Windows-desktop software control system for multiple robotic video cameras to the Datavideo SE-2000 or SE-3000 studio quality HD mixer/switcher. Using popular pan/tilt/zoom cameras, Cosmos adds a control panel GUI that lets you position, zoom, and focus your cameras while they are in 'preview', under computer control - all while you are operating the Datavideo Switcher in your live productions.
Datavideo's switchers offer a full broadcast-quality 5-input (SE-2000) small desktop video capability to your studio (with built-in frame-sync on all channels) or 8-input HD-SDI (SE-3000). Roland's V800HD has 12 inputs and you can combine HD-SDI, DVI/HDMI, and composite sources in a multiformat production. Now Cosmos H100 lets you integrate the flexible power of Roland's multi-format V800HD, Datavideo's SE-2000, or Datavideo's SE-3000 with advanced computer-control of robotic cameras for a compact studio centered on a single PC or laptop. The Datavideo SE-3000 switcher option is the most powerful HD-SDI switcher with digital effects, 8 HD-SDI inputs, and (optionally) up to 8 additional up-converted SDI inputs. SE-2000 permits up to up to 4 robotic cameras and the SE-3000 lets you use up to 7 robotic cameras. Roland's V800HD can support up to 7 cameras if desired, and can combine HD and SD sources simultaneously.
Cosmos H100 integrates the Datavideo Switcher with your cameras into a single PC-controllable studio package at a very affordable price. Cosmos H100 is an ideal system for use with live production setups like small PEG tv studios, churches, meeting rooms, and more. Now Cosmos robotic cameras can become integrated with the switcher into a studio in a single package that can be run by one system operator at a single PC console.
Cosmos H100 systems comes with the newest version of Videobotics proven CamMotion camera control software (PC-direct and internet-remote programs all included) with full network control and displays of camera position in numerical quantities (pan and tilt angles and zoom factor). This is the same proven cam control system used by JPL, Eastman Chemical, Intel, Intersil, U.S. Navy, U.S. Army, NASA, Adobe, and many others around the world.
PRICING: Cosmos H100 Systems with Sony EVI-H100S CMOS 1-CHIP HD-SDI Cameras and SE-2000 Switcher:
Using Datavideo SE2000 switcher for FULL HD-SDI VIDEO PRODUCTION - complete with 17" LCD Multi-view monitor
Cosmos H100 Package #Hx122 - 2 EVI-H100S, SE2000 w/ 17" LCD Monitor, Cosmos Software and Control Cable kits: $13,299.96
Cosmos H100 Package #Hx123 - (like Hx122, but with 3 EVI-H100S cameras): $16,399.95
Cosmos H100 Package #Hx124 - (like Hx123, but with 4 EVI-H100S cameras): $19,499.95
PRICING: Cosmos H100 Systems with Sony EVI-H100S CMOS 1-CHIP HD-SDI Cameras and Roland V800HD Switcher:
Using Roland V800HD switcher for FULL HD-SDI VIDEO PRODUCTION
Cosmos H100 Package #Hx182 - 2 EVI-H100S, V800HD, Cosmos Software and Control Cable kits: $17,799.96
Cosmos H100 Package #Hx183 - (like H8100-2, but with 3 EVI-H100S cameras): $20,899.95
Cosmos H100 Package #Hx184 - (like H8100-3, but with 4 EVI-H100S cameras): $23,999.95
PRICING: Cosmos H100 Systems with Sony EVI-H100S CMOS 1-CHIP HD-SDI Cameras and SE-3000 Switcher:
Using Datavideo SE3000-8 (8 HD-SDI input) switcher for FULL HD-SDI VIDEO PRODUCTION - complete with 17" LCD Multi-view monitor
Cosmos H100 Package #Hx132 - 2 EVI-H100S, SE3000 w/ 17" LCD Monitor, Cosmos Software and Control Cable kits: $22,299.96
Cosmos H100 Package #Hx133 - (like Hx132, but with 3 EVI-H100S cameras): $25,399.95
Cosmos H100 Package #Hx134 - (like Hx133, but with 4 EVI-H100S cameras): $28,499.95
Cosmos H100 Package #Hx135 - (like Hx134, but with 5 EVI-H100S cameras): $31,599.95
Cosmos H100 Package #Hx136 - (like Hx135, but with 6 EVI-H100S cameras): $34,699.95
Cosmos H100 Package #Hx137 - (like Hx136, but with 7 EVI-H100S cameras): $37,799.95
FOR SYSTEMS WITH OPTIONAL 12 or 16-INPUT VERSION OF SE-3000 SWITCHER PLEASE CALL.
Do you already own a switcher? Do you already own the cameras? We can configure the Cosmos H100 package for your unique combination of pre-existing equipment. Just CALL.
Additional Product Information Notes
