Check out our new lower-cost Cosmos-S5 systems using DataVideo's new SE-500 switcher.
Cosmos-S9 includes 2-7 robotic (computer-controllable pan/tilt/zoom) cameras and you can choose from two main types: either single-chip (Sony EVI-D70, far left) or 3-chip (Sony BRC-300, right) depending on your needs and budget. These popular Sony robotic cameras have excellent video quality and performance. Panning through wide angles of motion, Tilting through large ranges, superb optical zoom, and dual video output of Y/C and composite. They also support both RS232 and RS422 (long distance over 1000 meters) control signals. In addition the EVI-D70 cameras can be mounted either 'up' or 'hanging upside down' for your convenience (they have built-in reversal of the picture and left/right/up/down motion controls).

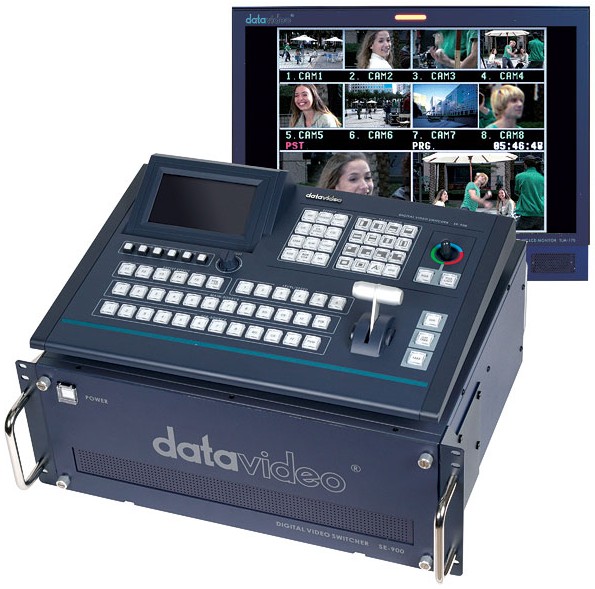

DataVideo's popular professional broadcast SE-900 switcher has inputs for up to 8 video sources (cameras or DVDs, etc. with component, Y/C, and composite). The SE-900 switcher is a proven winner that handles all the inputs and lets you switch smoothly from one video source to another using wipes, fades, and other effects (with audio following the video as you switch). Datavideo's SE-900 switcher offer a full broadcast-quality 8-source desktop video capability to your church, conference room, or other 'studio' environment (with built-in frame-sync on all channels). And Cosmos-S9 lets you integrate the flexible power of the SE-900 with advanced computer-control of robotic cameras *and* the SE-900 for a compact studio centered on a single PC or laptop.Datavideo SE-900 Features and Specifications:
DataVideo SE-900 Operating Control Surface

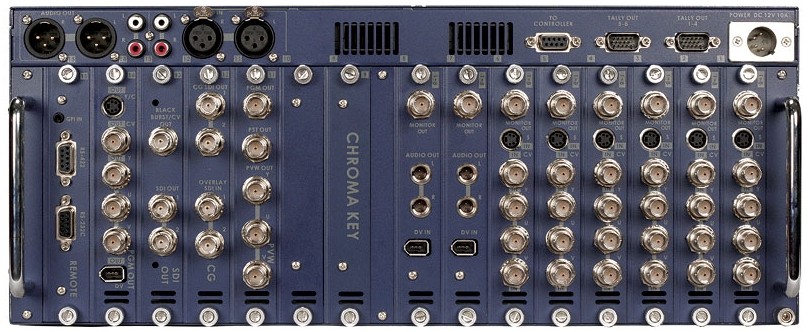

DataVideo SE-900 Rear Connection Panel Illustration (shown fully populated)

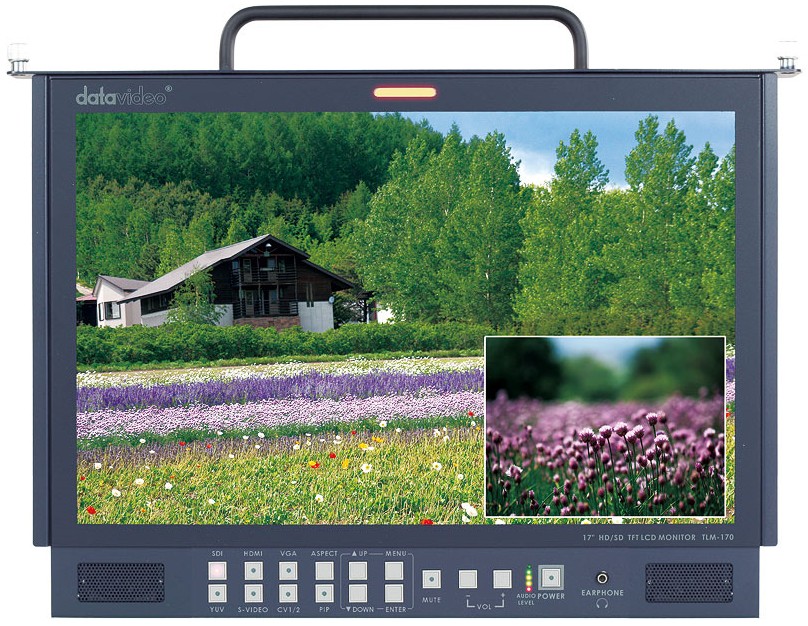

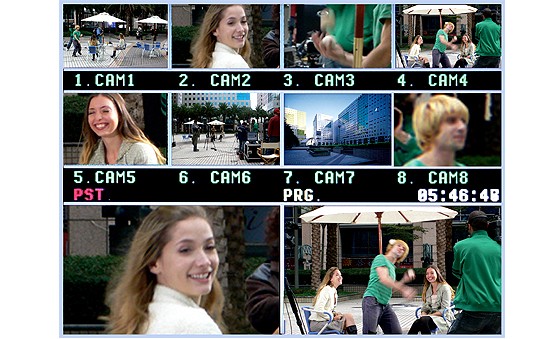

Accompanying the SE-900 switcher is DataVideo's TLM-170 17" LCD monitor designed for use with the SE-900 switcher. The TLM-170 displays all incoming video signals and both main/program and preview output on a single large display.
Tying together the whole package is the software heart of the Cosmos-S9 system: the Cosmos software package (for Windows PCs). Cosmos software gives you detailed direct camera positioning (pan, tilt, zoom, focus, and more), preset-positions, and video settings (white balance, backlight, brightness) for the robotic cameras. And the Cosmos software also communicates with the SE-900 switcher to allow direct operation of the 'wipe' function from the camera control GUI. With this powerful package of software you can control all your cameras individually and switch video sources on the SE-900.
Cosmos is an invaluable integration of camera-control with switcher operations for use with live production setups like small studios, churches, meeting rooms, and more. Now Cosmos robotic cameras can become integrated with the SE-900 into a studio-like operating environment in a single package that can be run by one operator at a single PC console.
Cosmos Software Details:

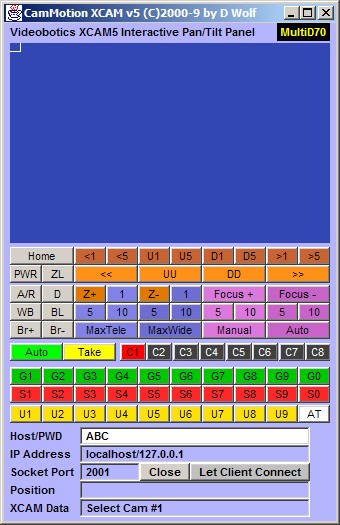

More Software Info And Screen Shot Image
Cosmos-S9 adds a Windows-desktop software control system for multiple robotic video cameras to the Datavideo SE-900 studio quality AV mixer/switcher. Using popular pan/tilt/zoom cameras, Cosmos adds a control panel GUI that lets you position, zoom, and focus your cameras while they are in 'preview', under computer control - all while you are operating Datavideo's SE-900 Switcher in your live productions.
Datavideo's SE-900 switchers offer a full broadcast-quality desktop video capability to your studio (with built-in frame-sync on all channels). Now Cosmos-S9 lets you integrate the flexible power of the SE-900 with advanced computer-control of robotic cameras for a compact studio centered on a single PC or laptop. The SE-900 is comfigurable and can support up to 7 cameras and a DVI (PC graphics) input. A variety of custom configurations with different combinations of input channel options are available and several basic setups are listed below.
Cosmos-S9 integrates the SE-900 with your cameras into a single PC-controllable studio package at a very affordable price. Cosmos-S9 is an ideal system for use with live production setups like small PEG tv studios, churches, meeting rooms, and more. Now Cosmos robotic cameras can become integrated with the SE-900 into a studio in a single package that can be run by one system operator at a single PC console.
Cosmos-S9 systems comes with the newest version of Videobotics proven CamMotion camera control software (host and internet-remote programs all included) with full network control and displays of camera position in numerical quantities (pan and tilt angles and zoom factor). This is the same proven cam control system used by dozens of city governments, churches, and corporations as well as U.S. Navy, U.S. Army, NASA, Jet Propulsion Laboratory, and many others around the world.
PRICING: Cosmos-S9 Systems with Single-Chip EVI-D70 or 3-Chip BRC-300 Cameras:
Cosmos-S9 Package #974 - 4 EVI-D70, SE-900 w/4 analog + DVI PC input, 17" LCD, cable kits & Cosmos Software: $12,599.95
Cosmos-S9 Package #975 - (like 974, but with 5 EVI-D70 cameras + DVI PC input): $13,899.95
Cosmos-S9 Package #976 - (like 975, but with 6 EVI-D70 cameras + DVI PC input): $15,199.95
Cosmos-S9 Package #977 - (like 976, but with 7 EVI-D70 cameras + DVI PC input): $16,499.95
Cosmos-S9 Package #934 - 4 BRC-300, SE-900 w/4 analog + DVI PC input, 17" LCD, cable kits, Cosmos Software: $25,299.95
Cosmos-S9 Package #935 - (like 834, but with 5 BRC-300 cameras + DVI PC input): $29,999.95
Cosmos-S9 Package #936 - (like 835, but with 6 BRC-300 cameras + DVI PC input): $34,699.95
Cosmos-S9 Package #937 - (like 836, but with 7 BRC-300 cameras + DVI PC input): $39,199.95
Do you already own an SE-900 switcher? Do you already own the cameras? We can configure the Cosmos-S9 package for your unique combination of pre-existing equipment. Just CALL.
Optional Recording Devices:
CALL - We'll recommend the best VCR, DVD-Recorder, or hard-drive-based DV recorder for your application. Here are a couple examples:
Come back soon ...
