Basic Model CamMotion PTU - $2899.95

Directed Perception high-performance PTU systems with CamMotion software

• Ultra precision and highly accurate re-positioning
• New versions for use with LANC camcorder and with integrated high-performance camera - see below
  • .05 degree per positioning step (4617 model)
  • .0125 degree per positioning step (4670 model)
• Over 200deg/sec pan and tilt operations (50 deg/sec with 4670 model)
• Pan range of 300 deg (+/- 150deg), tilt range of -45 to +30 deg.
• Supports payload up to 4lb (6lb with 4670 model)
• Heavy duty steel construction, suitable for years of unattended heavy use
• Special CamMotionPTU software has features specific for the PTU advanced capabilities, including:
  • ten precision pan/tilt position presets
  • pan speed selection (5 menu options, slow to very fast)
  • pan motion increment selection (5 menu step-size options)
  • tilt speed selection (5 menu options, slow to very fast)
  • tilt motion increment selection (5 menu step-size options)
  • coming soon - multiple unit control with selection menu for up to 5 daisy-chained units
  • direct mouse-click-drag motion control with new CamMotionPTU Version 3 software
  • precise angle readouts of pan and tilt
  • new mouse-click buttons to pan or tilt smoothly until released
  • extended remote programming and information access
  • CamMotionPTU 4617 (.05 degree per step, 200deg/sec, 4lb payload) - no video camera or camera controls - $2899.95
  • CamMotionPTU 4670 (.0125 deg step, 50deg/sec, 6lb payload) - no video camera or camera controls - $3199.95
  • Add $200 for weatherized option

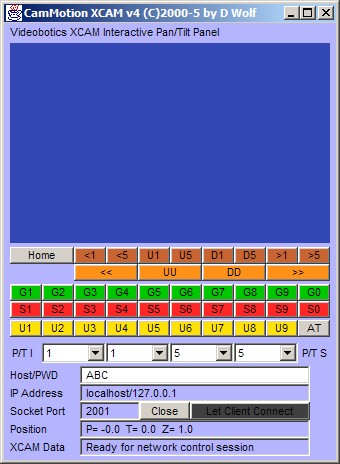

  • Screen shot of CamMotionPTU Version 5 software

CamMotion PTUL (4617) - $3199.95

Enhanced CamMotionPTU for LANC camcorder focus/zoom/tape (Sony, Canon)

Available only on special order - CALL.

• Includes LANC module for Sony/Canon camcorder focus/zoom/tape control - similiar to CamMotionPTB
• CamMotionPTUL lets you use your Sony or Canon LANC camcorder (like XL1, TRV-9, etc.) with the DP PTU
• CamMotionPTUL adds control of camcorder zoom, focus, and start/stop tape recording
• CamMotionPTUL adds videography applications to the DP PTU family
• Camera/camcorder is *not* included - use your existing LANC-controlled camcorder
• Add $300 to substitute PTU type 4670 for heavier camcorder or higher precision

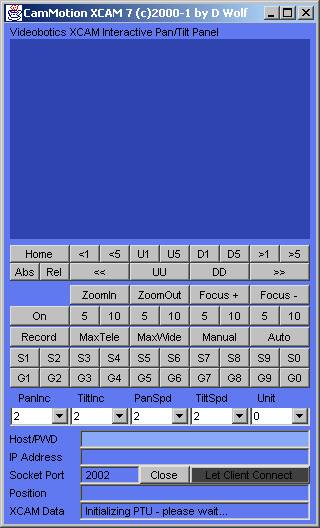

• Screen shot showing PTUL version camcorder controls

CamMotion PTUC - $4199.95

CamMotionPTUC with integrated Sony 470EX 18X zoom camera module w/zero-lux mode - $4199.95

Available only on special order - CALL.

• DP's new PTUC system integrates a powerful Sony 470 18X zoom modular cam in a sealed housing
• CamMotionPTUC software controls both the PTU and the camera module in a weatherized (-10C to 50C) housing
• CamMotionPTUC software has many advanced features for the camera module including control of zero-lux IR mode
• Add $300 to substitute the 4670 type PTU for higher precision

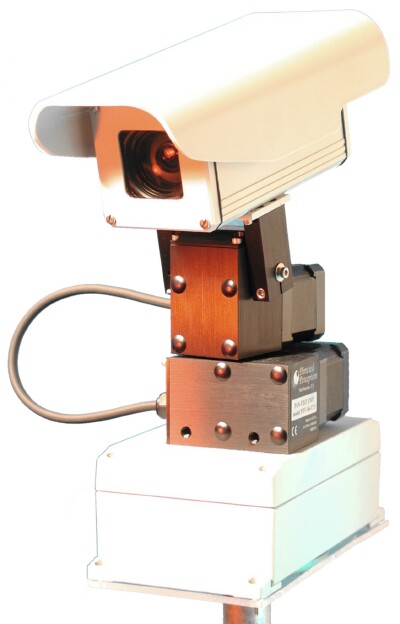

• Larger image of PTUC pan/tilt system with cam

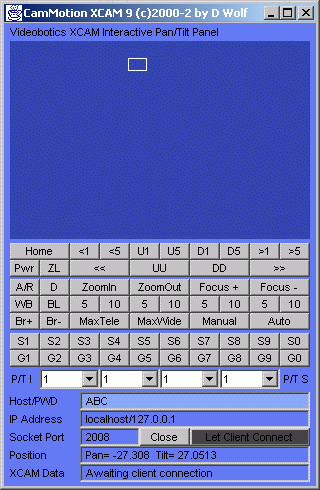

• Screen shot with Sony 18X integrated zoom cam controls

We also offer custom programming for software extensions to enhance the DP PTU products - CALL

CamMotion Software Packages for DP Products

• CamMotionPTU software only (for owners of existing DP-4617 and DP-4670): $999.95
• CamMotionPTUL software and LANC controller (for owners of existing DP PTU device to use with their own camcorder): $1299.95
• CamMotionPTUC software only (for owners of existing DP PTUC system with integrated 470 cam) - $1299.95

Additional CamMotion Software Info

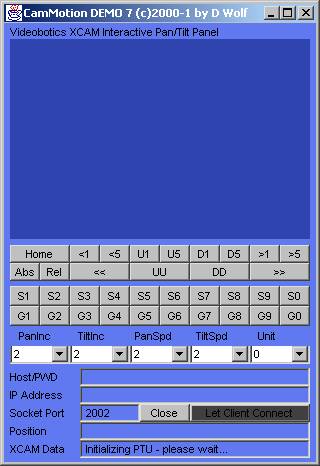

Screen shot of PTU Version 3 software

Screen shot with Camcorder controls

Screen shot with Sony 18X integrated zoom cam controls

Larger image of PTUC with integrated 18X Sony cam module

---
