Cameras with broadcast-quality video switchers - Cosmos Systems
Camera options include Sony EVI-D30, D70, D100, BRC-300; Elmo PTC-100S, PTC-110R; and Canon VC-C4, VC-C4R.
MultiCamMotion low-cost video-selector switch options include NCD ASEL16 and Extron NTSC or S-Video switchers.
Cosmos broadcast switcher options include Datavideo SE800 or SE800DV as well as NewTek VT[3].
All Cosmos and MultiCamMotion systems provide direct PC control as well as TCP/IP (internet) control of cameras and switcher.
Low-cost video-selector switcher Info:
- Extron's top quality SW6 CVMX 6 switcher - works with NTSC, PAL, or SECAM video
- Connects to separate COM port (MultiCamMotion systems require TWO free COM ports on your PC)
- Smooth vertical-interval glitch-free video switching
- Six NTSC/PAL/SECAM (female BNC) video inputs,
- Two (female BNC) simultaneous, buffered outputs (connect one to your PC capture card to send video to the net - see below)
- 30 MHz (-3dB) video bandwidth
- Capable of switching NTSC or PAL video as well as SECAM
- 75 ohm input/output impedance
- Vertical interval switching provides seamless switching between multiple timed sources
- Front panel power LED
- 1/2 rack width (2 switchers per rack), 1U high
- Internal 100-240 volt switchable power supply
See our Cosmos web pages for additional information on the Cosmos broadcast switcher systems.
Price Example (many other camera options):
- MultiCamMotion systems - complete Extron SW6 CVMX switcher, cables, and MultiCamMotion software
- MultiCamMotion-1: 1 Pro70 cam - $2899.95
- MultiCamMotion-2: 2 Pro70 cams - $3999.95
- MultiCamMotion-3: 3 Pro70 cams - $5099.95
- MultiCamMotion-S: Switcher and MultiCamMotion software package for existing cam owners: $1595.00
Software Info

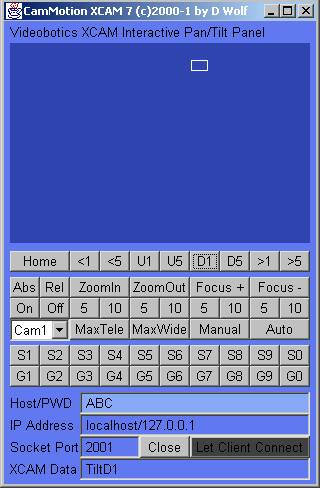

Screen Shot
Thank you for visiting the Videobotics MultiCamMotion Products Page.
