Cosmos Z3
|
|
|
|
|
BRC-Z330 |
SE-2000 |
Cosmos |
Extras |

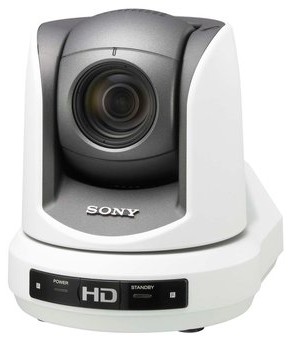

Cosmos Z3 includes 2-5 robotic (computer-controllable pan/tilt/zoom) hi-def cameras and full hi-definition Datavideo SE-2000 HD-SDI video switcher/mixer. By choosing Cosmos Z3 you get top quality Sony HD cameras and full HD-SDI production with the Datavideo SE-2000 HD-SDI system. These HD-SDI cameras (our Cosmos Z3 systems include the HD-SDI outputs required for the cameras as used in the Cosmos Z3 systems) also support RS232 (COM port) or RS422 control from your PC running our full-featured CosmosZ3 camera control software.
DataVideo's fully HD SE-2000 5-source switcher has inputs for up to 5 HD sources (3 or 4 HD-SDI + 1 or 2 DVI-D) and 4 balanced audio inputs, with 2 HD-SDI outputs and 2 balanced audio outputs. Three video inputs are HD-SDI, one is DVI-D, and one is user-selectable as either HD-SDI or DVI-D. It's easy to set up as many as 4 HD-SDI cameras and also have a PC graphics DVI-D input for a flexible multi-purpose HD production. With a HD-SDI/DVI-D converter you can even have up to 5 cams. You have a complete HD-SDI system, with two HD-SDI outputs and a DVI-D 'multi-view' monitoring output (we include a 17" LED-backlit LCD multi-view monitor, see below). The SE-2000 switcher is a proven winner that handles all the inputs and lets you switch smoothly from one video source to another using wipes, fades, and other effects. Datavideo's SE-2000 switcher has a DVI input for the fifth source coming from a computer graphics card DVI ouput. It's a full broadcast-quality HD multi-camera portable desktop video capability for your church, conference room, or other 'studio' environment (with built-in frame-sync on all channels). And Cosmos Z3 lets you integrate the flexible power of the SE-2000 with advanced computer-control of robotic broadcast quality HD-SDI cameras for a compact studio centered on a single PC or laptop. The SE-2000 can output to your flat screen or projector HD-SDI devices - so you have real HD from cameras all the way through to your display. If your display uses DVI or other HD input connectors, we will configure an optional converter to get you the right combination for your system.
Accompanying the SE-2000 switcher is DataVideo's 17" HD-SDI LED-backlit LCD monitor. The LCD displays all video source and output signals for simultaneous view (multi-view). This monitor has 2 HDMI, VGA, YUV (component), S-video, and 2 composite video inputs - all user selectable, and selectable SD or HD aspect ratio (4:3 or 16:9). You can use it for all your display monitor needs and it's perfect as the multi-view display for the SE-2000.
Tying together the whole package is the software heart of the Cosmos H1 system: the Cosmos software package (for Windows PCs). Cosmos software gives you detailed direct camera positioning (pan, tilt, zoom, focus, and more), preset-positions, and video settings (white balance, backlight, brightness) for the robotic cameras. And the Cosmos software also communicates with the SE-2000 switcher to allow direct operation of the 'wipe' function from the camera control GUI. With this powerful package of software you can control all your cameras individually and switch video sources on the SE-2000.
Cosmos is an invaluable integration of camera-control with switcher operations for use with live production setups like small studios, churches, meeting rooms, and more. Now Cosmos robotic cameras can become integrated with the SE-800AV into a studio-like operating environment in a single package that can be run by one operator at a single PC console.
CosmosH1 Software Details:
More Software Info And Screen Shot Image
|
High Definition Hard Drive RecordersThe Datavideo HDR-40 hard drive DVR records with HD-SDI input and has HDMI output for HD playback. The HD-SDI input also loops through to permit further transmission to other devices. Records in 1920x1080i, 720p, and 576i (PAL) and 480i (NTSC), and also HDV (1440x1080i) and SD (720x576/480i via SD-SDI). Selectable bit rates from 5-15Mbps (SD) and 20-60Mbps (HD). Then you pop out its removable drive cartridge and connect to your PC or MAC via eSata or USB to transfer video files for editing. With a 250 Gigabyte hard drive, the HDR-40 can record and store over 20 hours of DV or HDV video (standard for most editing systems). Desktop HDR-40 shown, rackmount version (HDR-50) also available (same price). Add $2000.00. |
|
Optional CG Titling System For Cosmos Z3Datavideo CG350 combines a powerful graphics/text overlay and titling CG software package with a Decklink HD Extreme video overlay card (for your PC) to provide a flexible and complete overlay system that operates through your separate PC. Add $2750.00 (basic kit = software + overlay card included).Full CG350 Info |
|
HD-SDI to Analog-Component Output Converter Cosmos Z3Use this Datavideo DAC-50 converter to connect the HD-SDI output of the SE-2000 to your HD component big-screen display or projector. Add $550.00. |
|
HD-SDI Four Ouput HD-SDI Distribution Amplifier for Cosmos Z3Use this Datavideo VP-445 HD-SDI DA to expand the outputs of the SE-2000 to multiple devices or video paths. Add $480.00. |
Other OptionsVideobotics can provide other devices like internet video encoders for remote viewing, pre-configured stand-alone CG overlay computers systems, additional 17" multi-input monitors, wall-mount brackets, and other options and accessories. We're happy to help with special applications. Please CALL to discuss your needs. |
Cosmos Z3 adds a Windows-desktop software control system for multiple robotic video cameras to the Datavideo SE-2000 studio quality HD mixer/switcher. Using popular pan/tilt/zoom cameras, Cosmos adds a control panel GUI that lets you position, zoom, and focus your cameras while they are in 'preview', under computer control - all while you are operating the Datavideo Switcher in your live productions.
Datavideo's switchers offer a full broadcast-quality 5-input small desktop video capability to your studio (with built-in frame-sync on all channels). Now Cosmos Z3 lets you integrate the flexible power of the SE-2000 with advanced computer-control of robotic cameras for a compact studio centered on a single PC or laptop.
Cosmos Z3 integrates the Datavideo Switcher with your cameras into a single PC-controllable studio package at a very affordable price. Cosmos Z3 is an ideal system for use with live production setups like small PEG tv studios, churches, meeting rooms, and more. Now Cosmos robotic cameras can become integrated with the switcher into a studio in a single package that can be run by one system operator at a single PC console.
Cosmos Z3 systems comes with the newest version of Videobotics proven CamMotion camera control software (PC-direct and internet-remote programs all included) with full network control and displays of camera position in numerical quantities (pan and tilt angles and zoom factor). This is the same proven cam control system used by JPL, Eastman Chemical, Intel, Intersil, U.S. Navy, U.S. Army, NASA, Adobe, and many others around the world.
PRICING: Cosmos Z3 Systems with Sony BRC-Z330 CMOS 1-CHIP Cameras with HD-SDI Ouput Cards:
Using Datavideo SE2000 switcher for FULL HD-SDI VIDEO PRODUCTION - complete with 17" LCD Multi-view monitor
Cosmos Z3 Package #Z322 - 2 BRC-Z330, SE2000 w/ 17" LCD Monitor, Cosmos Software and Control Cable kits: $19,499.95
Cosmos Z3 Package #Z323 - (like Z322, but with 3 BRC-Z330 cameras): $25.499.95
Cosmos Z3 Package #Z324 - (like Z323, but with 4 BRC-Z330 cameras): $31.499.95
Do you already own an switcher? Do you already own the cameras? We can configure the Cosmos Z3 package for your unique combination of pre-existing equipment. Just CALL.
Additional Product Information Notes
